v1.1.4 | 2026-07-02:
- added min() and max() built-ins to PLC-PY and to Python modules (from Core.mafi import min, max) — accept either several values (min(a, b, c)) or a single iterable (max(self.Array)); works with any comparable type but every item must be the same type (numbers int/float/Fix32 may mix), and a mismatch gives a plain-language error in both the compile check and at runtime
- changed arithmetic (+, -, *, /, //, %) in PLC-PY/Python scripts to mix int/float/Fix32 automatically (e.g. min(a, b) * a Fix32 pin no longer errors) and to report type mismatches in plain language ("can not add int and str") instead of the old "Types has no divide yet or never" message
- fixed chicken farm module

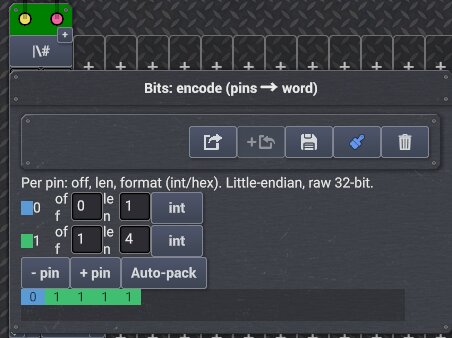

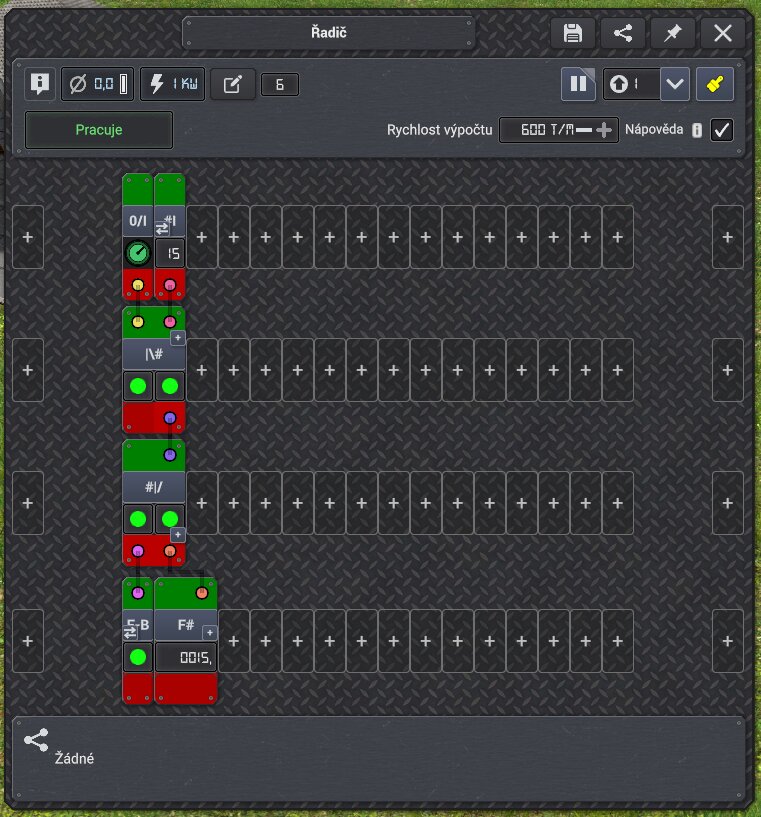

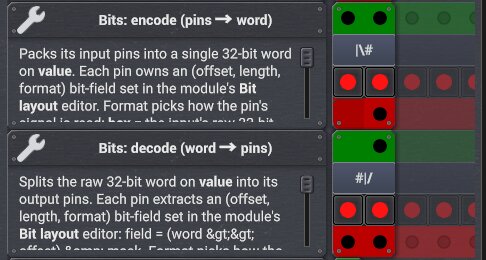

- added Bits: encode (pins → word) module — packs its input pins into a single raw 32-bit word; each pin owns a configurable (offset, length, format) bit-field edited in the new Bit layout inspector (little-endian), so a 2-pin encoder with lengths 16/16 is a combiner; per-pin format picks how the signal is read — hex (raw value, e.g. Constant (hex)) or int (integer part); pins (max 16) are added/removed from the module edge or the Bit layout editor's +/- pin buttons, and each input has an LED that lights while its signal is non-zero
- added Bits: decode (word → pins) module — splits a raw 32-bit word into its output pins by the same per-pin (offset, length, format) Bit layout; format emits each field as hex (raw value) or int (integer part); a 2-output decoder with lengths 16/16 is a decombiner/splitter; a src_int toggle reads the input's integer part instead of its raw value so a plain integer's bits can be decoded; each output has an LED that lights while its signal is non-zero
- added Hex → Integer and Integer → Hex modules — bridge between the hex/raw 32-bit Bits/Constant (hex) world (values in Fix32's raw backing) and normal arithmetic signals (integer part)
- changed Shift module: ported from Python to C# with the same pins and extensions; old Runtime_Shift_2/4/7 saves migrate automatically
- added config.json "controller_reach_distance" (default 20 tiles) — sets how far a module's entity field may reach when picking an entity to connect to

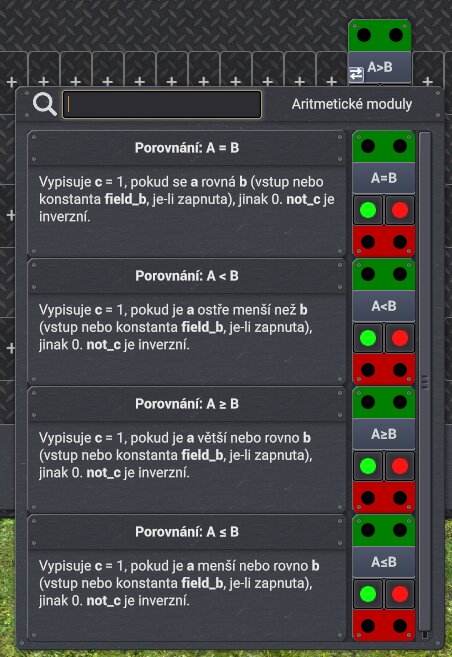

- added module prototype swap — modules in a swap group show a small "⇄" button in the bottom-left of their name; clicking it opens a searchable picker of compatible operations and replaces the prototype in place, keeping cables and field values. A candidate that would lose data is shown disabled with the reason (e.g. swapping a multi-input AND/OR into XOR, which has no extension pins). Swap groups: arithmetic combiners (Sum/Sub/Multiply/Divide/Modulo), integer comparators (A=B/A>B/A<B/A≥B/A≤B), boolean (AND/OR/XOR), Hex↔Integer bridges, integer/hex constants, single-pin displays (product/entity/LED), 7-seg/16-seg number encoders, 7-seg/16-seg display drivers, Import/Export logistics-mode set and get, the storage-flow/storage-logistics/get percentage modules, and the notification modules (Info/Warning/Error). Swap groups accept Python-written modules too — a Python module declares `swap_groups = [ SwapGroups.Notifications ]` to join a built-in group, or authors define their own named group with a `class MyGroup(SwapGroup)` (see the new Modules/README.md for the full custom-module/group/template guide)
- changed Sub/Multiply/Divide/Modulo modules: now extensible with up to six extra input pins like Sum (a-b-c…, a*b*c…, a/b/c…, a%b%c…); for Multiply/Divide/Modulo an added-but-unconnected pin is skipped so it can't zero the product or divide by zero
- changed Button (on/off) module: the on/off display is now an SVG rotary toggle knob (black ring) — red and rotated 45° left when off, green and rotated 45° right when on, pointer swings up to the neutral mid position (keeping the current color) while held, and gray while the controller is paused — replacing the old "( | )" symbol. Modules can request it via the new "[button]" display type (AddDisplay(..., button: true))
- changed Button (pass value) module: the display is now an SVG pass-through gate knob with a flow arrow — arrow down while passing (green when the input is non-zero, red when the input is off), arrow right with the light off (gray) when blocked, and arrow to the bottom-right (keeping the current light) while held. Modules can request it via the new "[pass]" display type (AddDisplay(..., pass: true))

v1.1.3 | 2026-06-05:

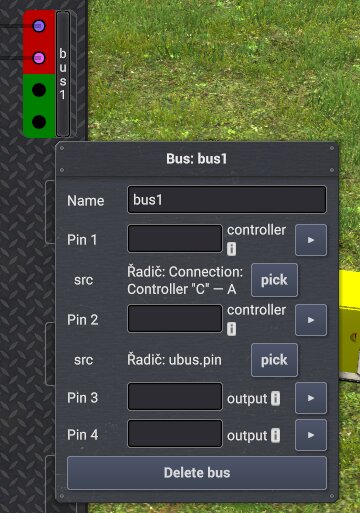

- added bus system for variables/signals
- added Connection: Animal Farm (A-FARM) module — controls chicken farms, cattle ranches and any animal farm: writes the slaughter slider step (0-10, <0 off) and breeding pause, each applied only while its pin is wired or its override toggle is on so it won't fight the manual UI; outputs the operating state, current slaughter step and the starving / missing-water flags, with optional output extensions for animals-born / carcass per month. Logistics, pause, priority, power/worker status and the animal / food / water / produce counts stay on the existing generic Connection modules (Storage with its watched product, Import, Export, …)
- changed Max module: a single extensible module (2 base inputs A/B, extend up to 8) replaces the fixed-size variants and the old "Maximum: A or B" module; optional output extensions expose the input index of the minimum (indexmin) and maximum (indexmax), and each input now has an LED below it lighting green for the current maximum, red for the minimum, and gray otherwise — old Max saves migrate automatically
- changed Connection: Storage (STOCK) module now also reads Research Labs — outputs the global current research's node id (display falls back to the research's own icon, or the first thing it unlocks if no explicit icon is set) along with steps done / total cost / completion percent
- added Statistic: Health (HLTH) module — reads PopsHealthManager.HealthStats from a Hospital or Captain's Office; main output is the current health percent, extension outputs add this-vs-last-month diff, last month's percent, and remaining months on the active disease

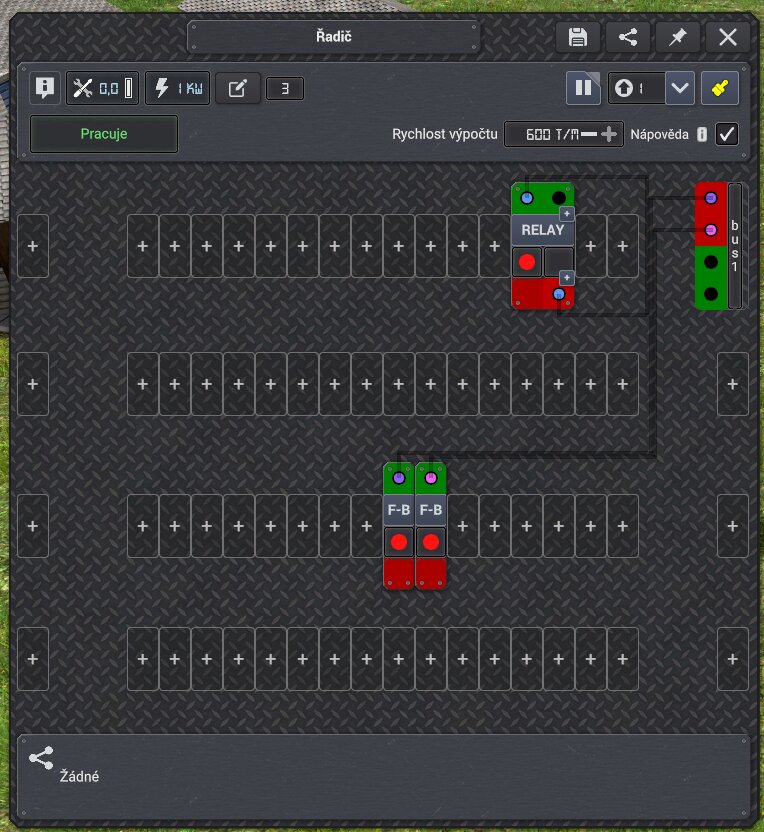

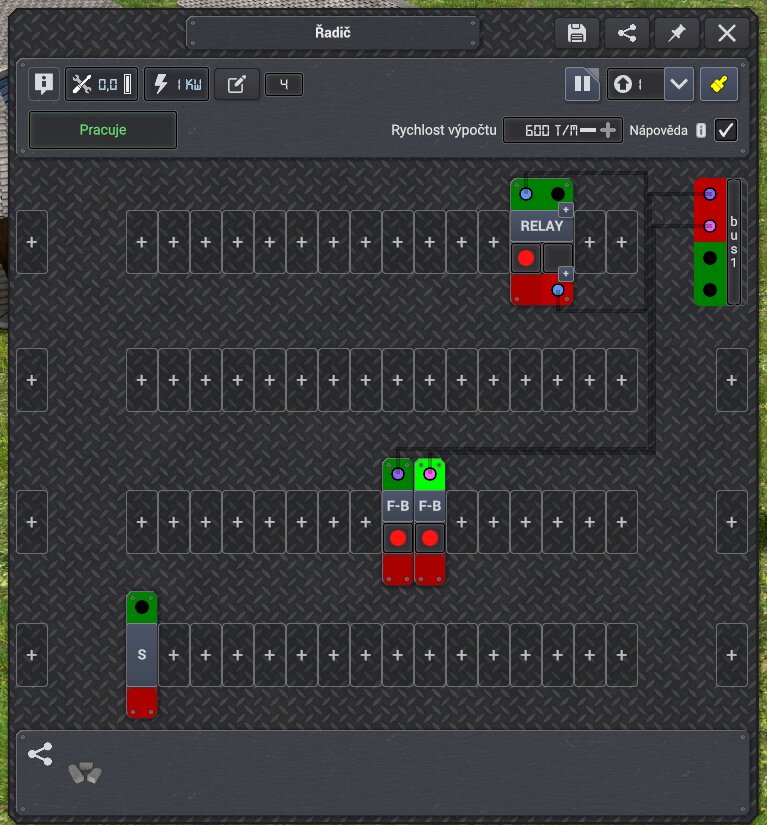

- added Relay (RLY) module — gated pass-through that mirrors each input to its same-position output when the enable input is non-zero (defaults to enabled when unconnected); base pair is A, and input/output extensions grow in lock-step so the Nth input always pairs with the Nth output
- added per-module highlight color: a paint button in the module edit dialog opens a color picker that recolors the entity tint and connection line shown when the module (or the whole controller) is hovered; default matches the previous CornflowerBlue so existing controllers look unchanged
- added "Pick reachable signal" button to the FM receiver module's frequency picker — opens a list of currently in-range broadcasts labeled with channel frequency, ID3 name, and signal strength; clicking jumps the receiver straight to that channel
- fixed AM antena entity-level copy (Ctrl+C / V): the per-channel mine/ship routing now travels with the antena instead of the clone coming up with an empty redirected list
- fixed Connection: Office - Edict module's max-level: previously counted every tier in the edict chain (including ones blocked by un-researched unlocks), so the target would clamp to a level the player could never reach; now stops at the first locked tier so the displayed x|n and the target clamp match what's actually enabling-capable

v1.1.2c | 2026-05-23:
- added translation for Brazilian Portuguese by @Raffaelmjr

v1.1.2b | 2026-05-17:
- hotfix after change of variable was not possible to remove unused variables

v1.1.2 | 2026-05-16:
- added calculation optimization for copying of connected signals
- updated actions to be done with commands for potential multiplayer
- added read for computation on Mainframe and DataCenter
- added module for set racks
- added button to deselect all categories
- cargo docks can now read with transport module, connected ship
- added Connection: Office - Edict module to drive edict level on the Captain's Office
- prototype picker grid switched to transparent icon-only buttons; vehicle options now show vehicle + fuel icons side-by-side
- fixed that the recipe selector did not update recipes when more than one or no one set
- the recipe selector also unset the building

v1.1.1 | 2026-06-12:
- added option convert hex values, that is usable for colors and product
- added Compare: A vs B module (A<>B) — combined less/greater compare with binary / positive / sumup output modes; mode variants surface in the module picker as preset templates
- extended Connection: Office - Unity - now have extendable pins to show more info
- added hint checkbox, that will hide tooltip for controls
- added option to select template directly from NewModule picker
- added option to precofigure some fields directly from NewModule picker
- added direct edit for modules, that are not part of controller yet
- moved panel for openning variable window
