Keybind Framework v1.0.1

Mods that now support Keybind Framework! (Click on names to go to the mods)

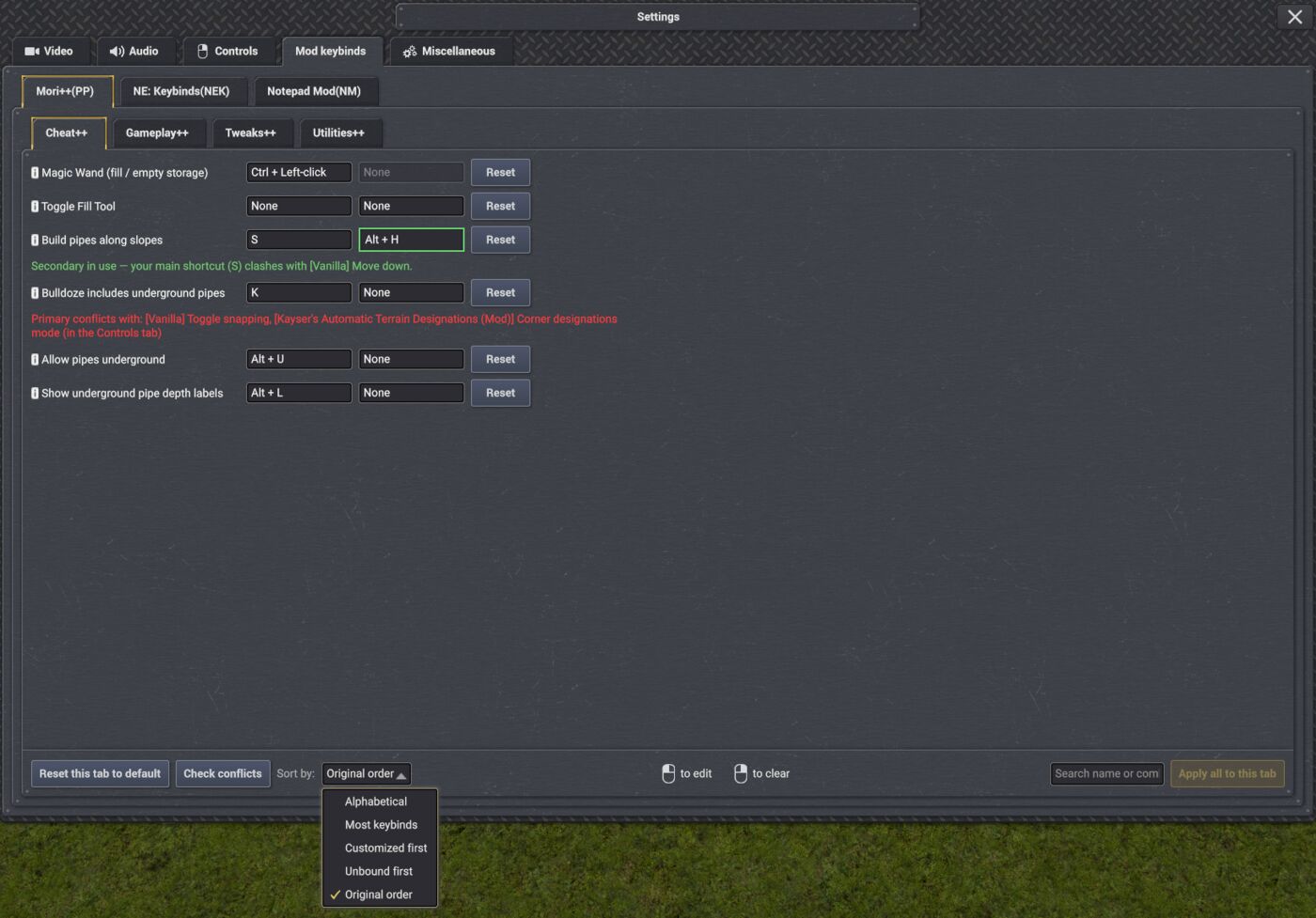

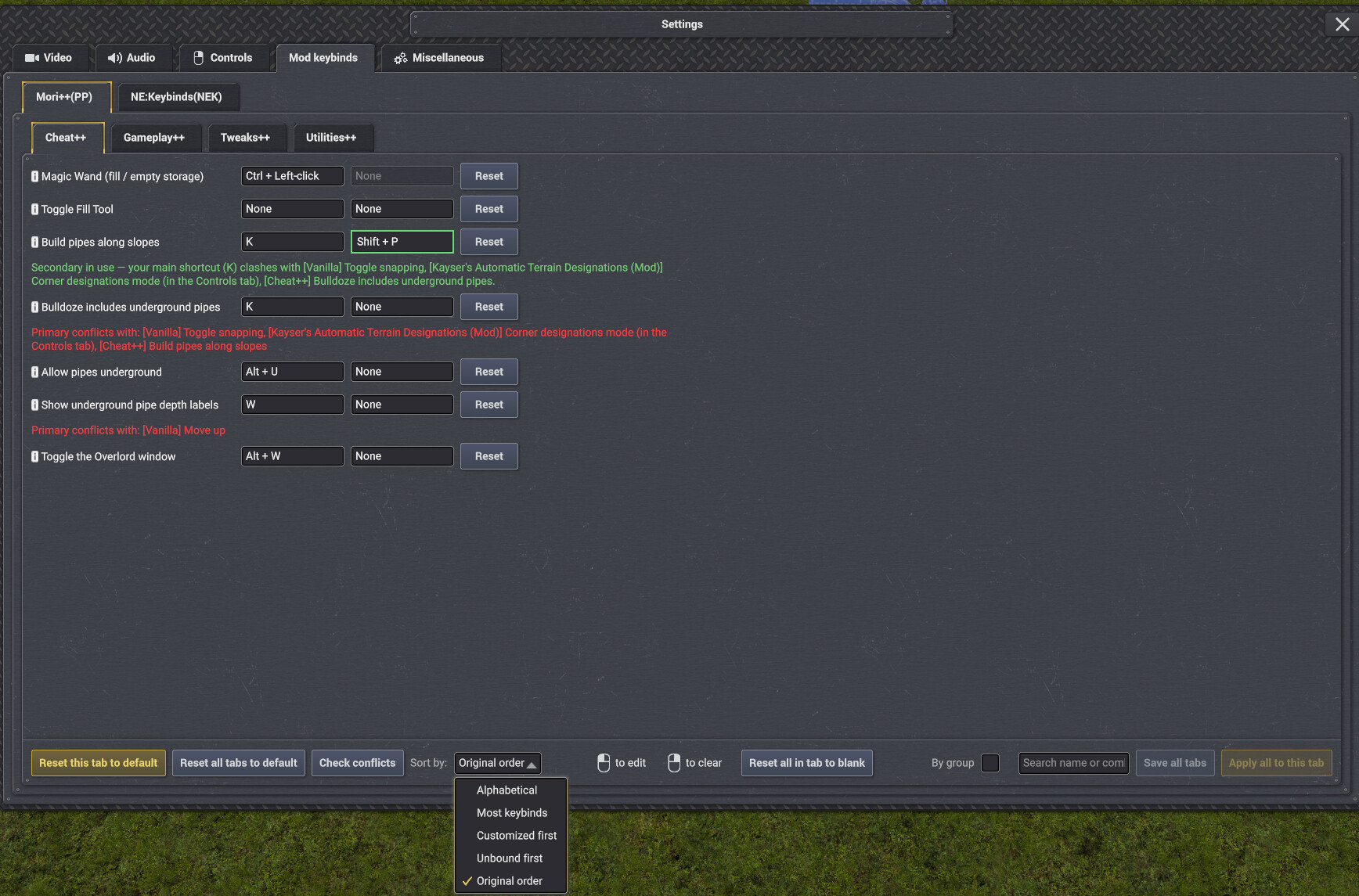

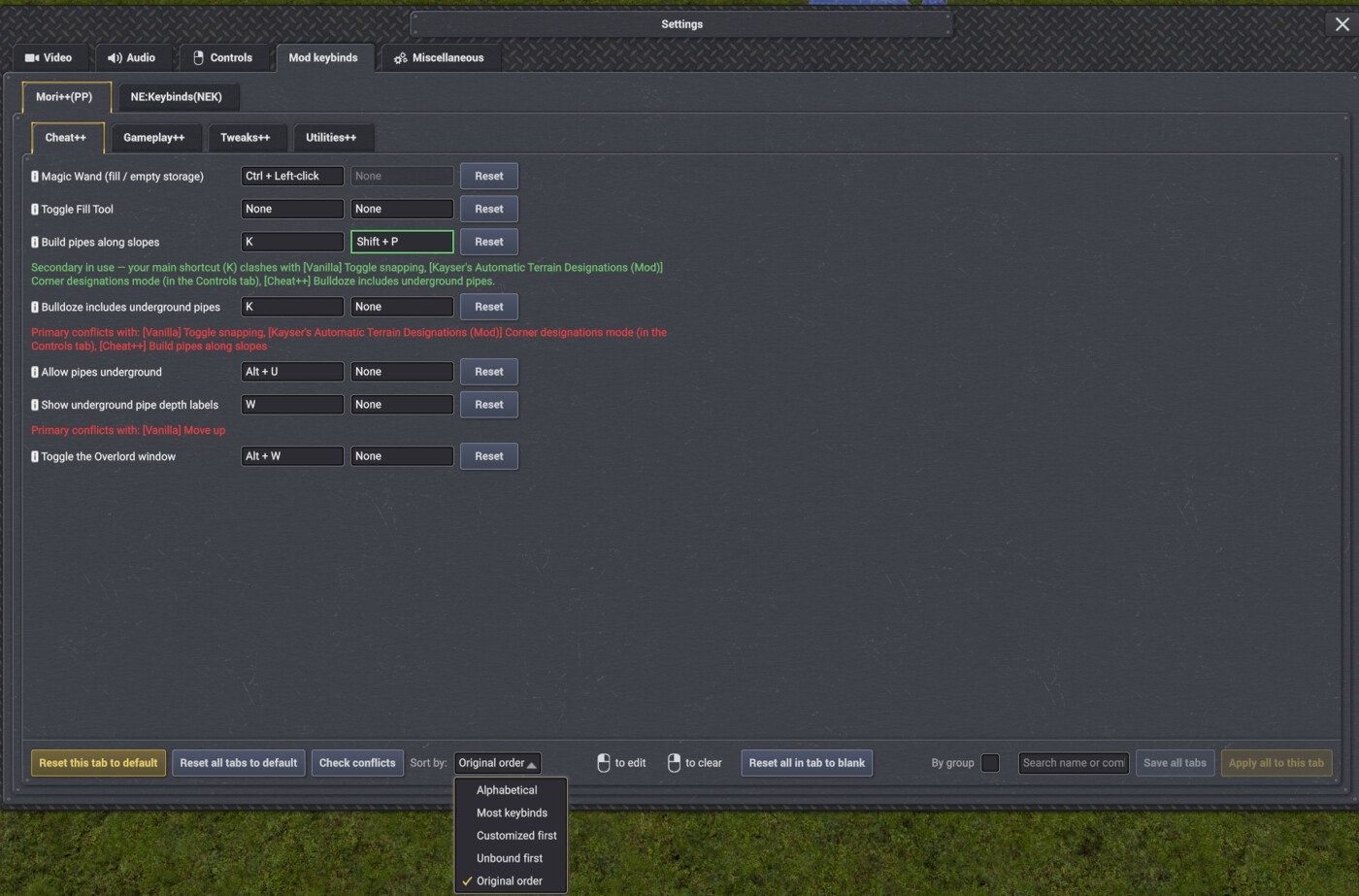

Adds a Mod keybinds tab to the Settings window that lists hotkeys from every mod built on this framework, each in its own sub-tab, and more

• For Users this adds a way to rebind keybinds and let you know if any conflict. (See image under as example)

• For modders see guide under images how to implement your keybinds to the framework.



# Adding your mod to the Keybind Framework

The Keybind Framework is a standalone mod from Mori Suit mods. (`keybind-framework`) that gives
every mod's hotkeys one shared home: a **"Modded Keybinds"** tab in the game's Settings window,
right after Controls. Register your mod's keybinds with it and you get, for free:

- Your own tab in Settings (named after your mod), or a shared tab with your other mods if you want one
- Optionally, split a mod with lots of keybinds into its own sub-tabs by group, instead of one long scrolling list (see *split your own mod's keybinds into sub-tabs* below)
- A rebinding UI (click a field, press a new key, Apply)
- Primary + Secondary key slots
- Automatic conflict detection against vanilla shortcuts **and every other mod** registered with the framework — the player is told exactly which mod owns the key they clashed with
- Optionally, hand your keybind straight to the game's own shortcut dispatcher — no input polling code in your mod at all (see *Skip the polling* below)

You talk to the framework purely through **reflection** — there is no DLL to reference and no
compile-time dependency. This means your mod keeps working fine even if a player doesn't have
the Keybind Framework installed; it just falls back to your own hard-coded default keys.

---

## Step 1 — Declare it as an optional dependency

In your mod's `manifest.json`, add:

```json
"optional_mod_dependencies": ["keybind-framework"]

Use optional_mod_dependencies, never mod_dependencies. A mandatory dependency will grey out your mod on a player's existing save if they don't have the framework installed. Optional means your mod loads and works fine on its own either way.

Step 2 — List your keybinds

Describe each keybind as a row of 7 plain strings:

{ id, label the player sees, type, default combo, gesture hint, group heading, tooltip }

Example — three keybinds, two of them sharing a group heading:

private static readonly string[][] Descriptors =
{
    new[] { "MyMod_OpenWindow",   "Open My Cool Mod window", "Discrete", "LeftControl + M", "",           "Windows", "Opens the main window." },
    new[] { "MyMod_QuickAction",  "Do the quick action",     "Discrete", "G",                "",           "Actions", "Runs the quick action on the selected building." },
    new[] { "MyMod_PaintModifier","Paint mode",               "Modifier", "LeftAlt",          "Left-click", "Actions", "Hold and left-click tiles to paint them." },
};

This renders as your own tab titled after your mod, with a "Windows" heading over the first row and an "Actions" heading over the other two.

Step 3 — Register when your mod loads

Call this once from IMod.Initialize (not RegisterPrototypes — by Initialize every mod assembly, including the framework's, is guaranteed to be loaded):

private const string MOD_ID = "my-cool-mod";     // your manifest.json "id"
private const string DISPLAY = "My Cool Mod";     // shown as your tab's title
private const string SEP = "~|~";

private static MethodInfo s_getCombo;
private static bool s_initialized;

public static void Register()
{
    if (s_initialized) return;
    s_initialized = true;
    try
    {
        Type apiType = null;
        foreach (var asm in AppDomain.CurrentDomain.GetAssemblies())
        {
            apiType = asm.GetType("KeybindFramework.KeybindFrameworkApi");
            if (apiType != null) break;
        }
        if (apiType == null) return; // framework not installed - your mod just keeps its own defaults

        s_getCombo = apiType.GetMethod("GetCombo", new[] { typeof(string), typeof(string) });
        var reg = apiType.GetMethod("RegisterRaw", new[] { typeof(string), typeof(string), typeof(string[]) });
        if (reg == null) return;

        var rows = new List<string>();
        foreach (var d in Descriptors)
            rows.Add(string.Join(SEP, new[] { d[0], d[1], d[2], d[3], d[4], d[5], "", d[6] }));
        reg.Invoke(null, new object[] { MOD_ID, DISPLAY, rows.ToArray() });
    }
    catch { }
}

A couple of things worth knowing:

• RegisterRaw must be looked up with its exact parameter types (GetMethod("RegisterRaw", new[] { typeof(string), typeof(string), typeof(string[]) })), not just by name — the framework has more than one method called RegisterRaw, and a name-only lookup throws.
• The empty "" in the middle of the row is a reserved slot for a Secondary default key, which you don't need to set — see Conflicts are automatic below.
• Everything is wrapped in try/catch so a missing or older framework DLL can never crash your mod.

Step 4 — Read the player's chosen key

Cache GetCombo once in Register() (already done above), then check it whenever you poll for input:

private static string ComboFor(string id, string fallbackDefault)
{
    try
    {
        if (s_getCombo != null)
        {
            var c = s_getCombo.Invoke(null, new object[] { MOD_ID, id }) as string;
            if (!string.IsNullOrEmpty(c)) return c;
        }
    }
    catch { }
    return fallbackDefault; // framework absent or key not found - use your own default
}

GetCombo always returns the combo that's actually in effect right now — including any rebind the player made, and including an automatic switch to the Secondary slot if the Primary is clashing with something (see below). You never need to check overrides yourself.

Play nice while the player is typing a new key

While a player is capturing a new binding in Settings, raw key presses are still visible to your mod's own input checks — so without a guard, typing "Ctrl" to set a new binding could also fire your own Ctrl-based hotkey elsewhere in the game. Bail out at the top of your input check with:

if (AppDomain.CurrentDomain.GetData("MoriPP_KeybindCapturingFrame") is int cf && Time.frameCount - cf <= 1)
    return false;

This flag is set by the framework only while a rebind capture is actually in progress, and it expires automatically after one frame, so it's safe to check unconditionally every time.

Optional: skip the polling — let the game fire your keybind

If a keybind is a simple "press it once, something happens" action, you don't have to write any input polling at all. The game has its own dispatcher for this — IUnityInputMgr.RegisterGlobalShortcut— and the framework can hand it the player's current combo as a ready-made KeyBindings.

This path is press-only. It cannot see a key being held or released — so any hold-style keybind, and every "Modifier" row, must keep using polling instead (Step 4 plus IsHeld in the full example below). Use this section only for plain press-and-fire actions.

private static MethodInfo s_getKeyBindings;

// in Register(), next to s_getCombo:
s_getKeyBindings = apiType.GetMethod("GetKeyBindings", new[] { typeof(string), typeof(string) });

private static KeyBindings BindingsFor(string id, KeyBindings fallback)
{
    try
    {
        if (s_getKeyBindings != null)
            return (KeyBindings)s_getKeyBindings.Invoke(null, new object[] { MOD_ID, id });
    }
    catch { }
    return fallback; // framework absent or older - your own default fires instead
}

Then wire it up once from IMod.Initialize:

public void Initialize(DependencyResolver resolver, bool gameWasLoaded)
{
    MyKeybinds.Register();
    var inputMgr = resolver.Resolve<IUnityInputMgr>();
    inputMgr.RegisterGlobalShortcut(
        m => MyKeybinds.BindingsFor("MyMod_OpenWindow",
            KeyBindings.FromPrimaryKeys(KbCategory.Camera, ShortcutMode.Game, KeyCode.LeftControl, KeyCode.M)),
        (Func<bool>)(() => { OpenWindow(); return true; }));
}

How it behaves:

• The function you pass in is re-read every time the game checks input, so a rebind the player makes in Settings applies instantly — no re-registering, no restart needed.
• The game won't fire it while the player is typing in a text field, and the framework keeps it quiet during rebind capture automatically — the MoriPP_KeybindCapturingFrame check from the previous section is not needed on this path.
• The fallback is what fires when the framework isn't installed — build it with KeyBindings.FromKey(...) / FromPrimaryKeys(...) so it matches your row's default combo. Use any category except KbCategory.General (General keys sit outside the game's longer-combo-wins handling).
• If GetKeyBindings comes back null, the player is running an older framework version — fall back to the polling from Step 4.
• If the key should open/close a window of yours, pass your WindowController itself as the second argument instead of a callback — that's the same overload the game uses for its own windows.

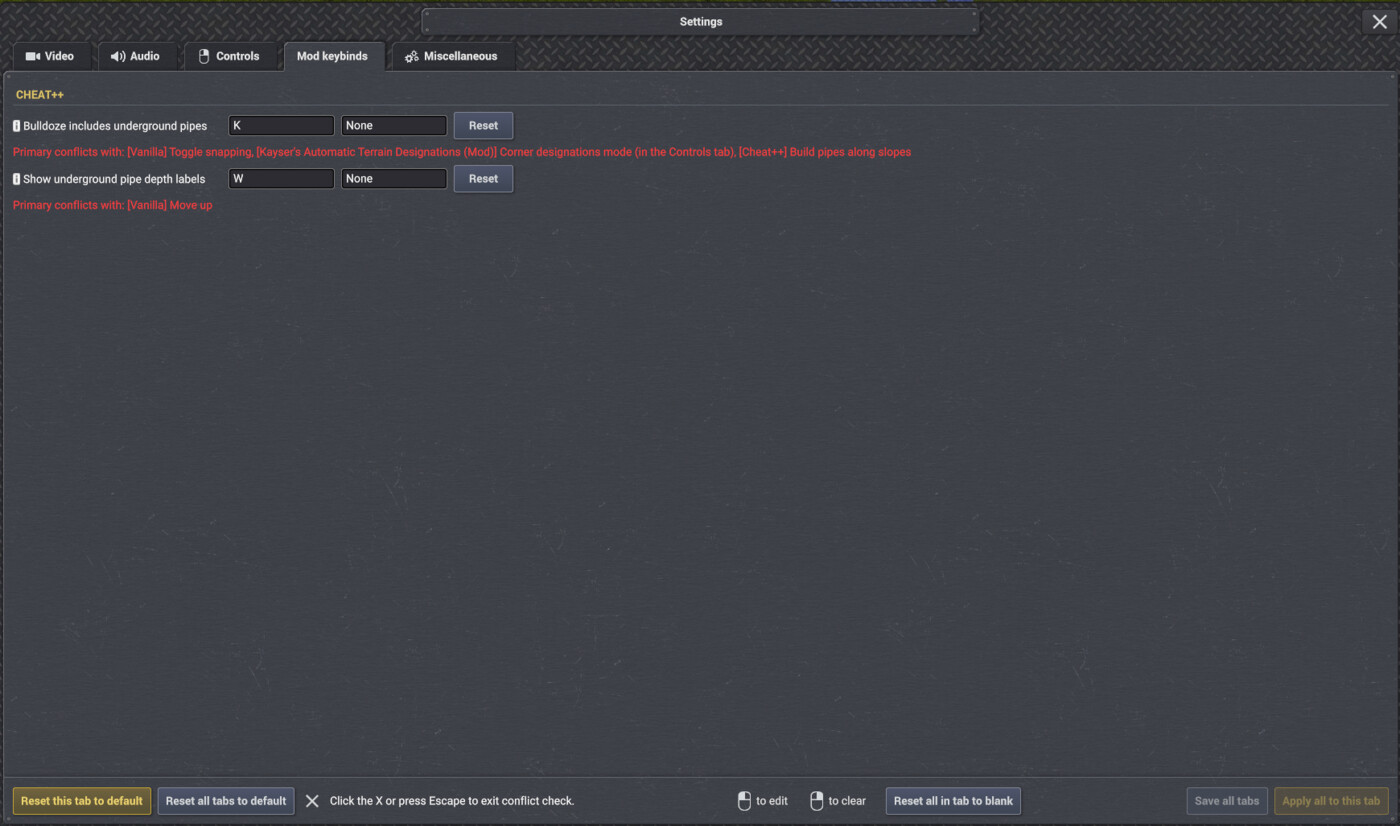

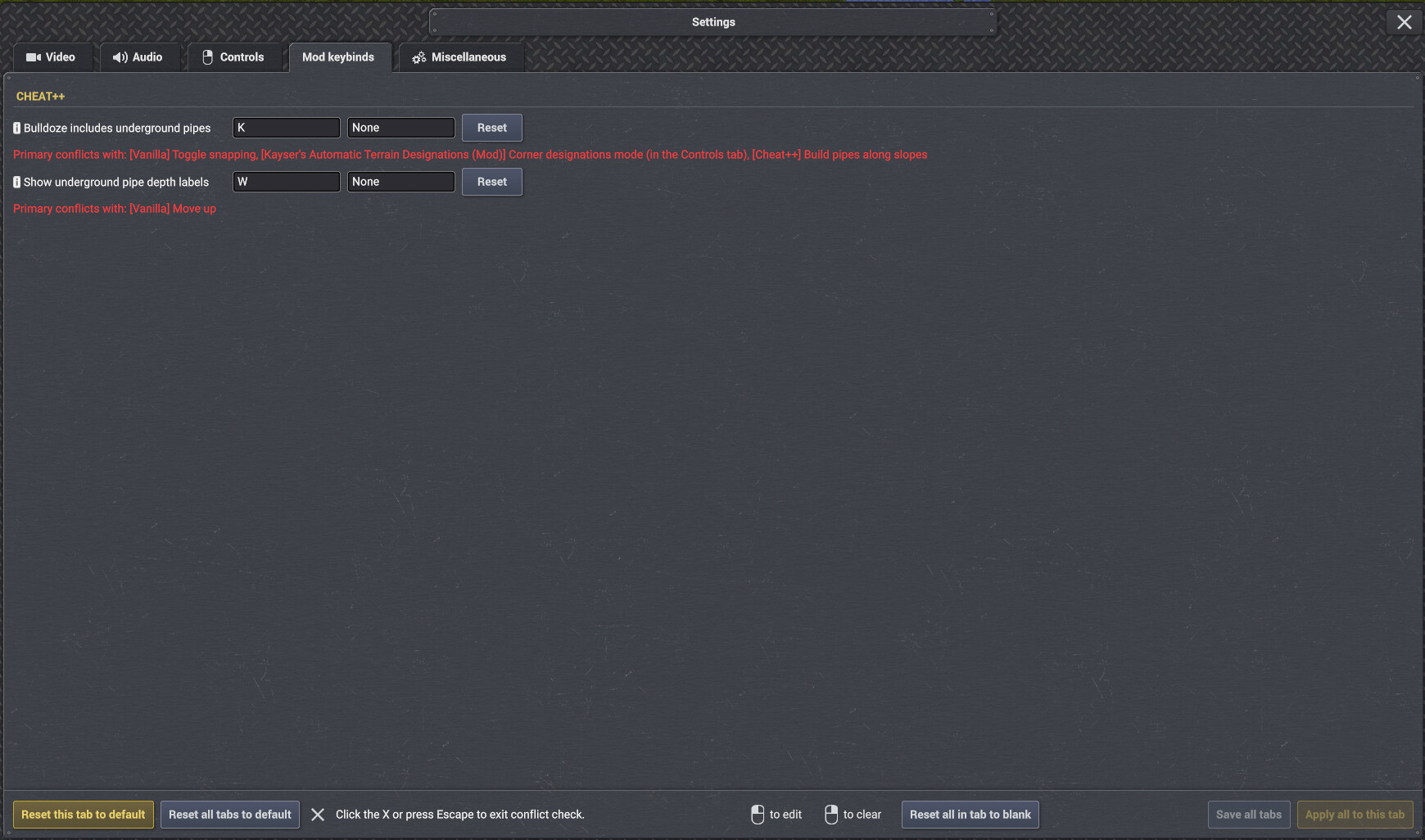

Conflicts are automatic — and they name the other mod

You don't write any conflict-detection code yourself. The moment you register, every combo you use is checked against vanilla shortcuts and every other mod's registered keybinds. If two mods end up on the same key, the player sees a note right under the keybind field, naming the exact other mod and its keybind label, for example:

Conflicts with: [Tweaks++] Toggle the Tweaks++ window

— never just a bare "conflict". This works the same way whether the clash is with a vanilla shortcut ([Vanilla] ...) or with any other mod built on the framework, including yours.

Every "Discrete" keybind also gets an optional Secondary slot in the UI for free. If a player's Primary combo is clashing with something and they've set a free Secondary, the game automatically switches to the Secondary and tells them so — GetCombo always hands you back whichever slot is actually active, so there's nothing extra for you to do.

Optional: share one tab across several of your mods

By default your mod gets its own tab. If you ship more than one mod and want them to share a single tab — exactly how the four Mori++ Suite mods all share one "Mori++ Suite" tab — pass a bundle name as a 4th argument instead of the 3-arg call above:

var reg = apiType.GetMethod("RegisterRaw", new[] { typeof(string), typeof(string), typeof(string[]), typeof(string) });
reg.Invoke(null, new object[] { MOD_ID, DISPLAY, rows.ToArray(), "My Studio's Mods" });

Every mod that registers with the same bundle name gets its own sub-tab inside that one shared tab, instead of a separate top-level tab each — exactly how Cheat++, Gameplay++, Tweaks++, and Utilities++ each show up as their own sub-tab inside "Mori++ Suite" rather than one long scrolling list.

Optional: split your own mod's keybinds into sub-tabs

If your mod has a lot of keybinds — dozens or even hundreds — one long scrolling list gets unwieldy fast. Pass groupsAsTabs: true and every distinct group heading you already use (Step 2) becomes its own sub-tab instead of just a heading, so players click between smaller focused tabs instead of scrolling past everything. Bindings left with no group land in a catch-all "General" tab.

Use the 5-arg RegisterRaw overload instead of the 3-arg one from Step 3 (again, look it up by its exact parameter types — the framework has several RegisterRaw overloads):

var reg = apiType.GetMethod("RegisterRaw", new[] { typeof(string), typeof(string), typeof(string[]), typeof(string), typeof(bool) });
reg.Invoke(null, new object[] { MOD_ID, DISPLAY, rows.ToArray(), null, true });

Pass null for the bundle argument (4th position) if you don't also want to share a tab with other mods — or your bundle name if you want both at once: a labelled sub-tab per bundle member, with that member's own keybinds further split into sub-tabs by group.

Each group sub-tab is fully self-contained — its Reset all / Apply all only ever touches that one group's keybinds, never the rest of your mod.

Full example

This uses the full 5-arg RegisterRaw signature so you can see the bundle and groupsAsTabsswitches from the two Optional sections above in place — both are set to "off" here (null / false), which is the plain single-tab behavior. Flip either one to opt in.

using System;
using System.Collections.Generic;
using System.Reflection;
using UnityEngine;

namespace MyCoolMod
{
    internal static class MyKeybinds
    {
        private const string MOD_ID = "my-cool-mod";
        private const string DISPLAY = "My Cool Mod";
        private const string SEP = "~|~";

        // id, label, type, default combo, gesture hint, group, tooltip
        private static readonly string[][] Descriptors =
        {
            new[] { "MyMod_OpenWindow",    "Open My Cool Mod window", "Discrete", "LeftControl + M", "",           "Windows", "Opens the main window." },
            new[] { "MyMod_QuickAction",   "Do the quick action",     "Discrete", "G",                "",           "Actions", "Runs the quick action on the selected building." },
            new[] { "MyMod_PaintModifier", "Paint mode",              "Modifier", "LeftAlt",          "Left-click", "Actions", "Hold and left-click tiles to paint them." },
        };

        private static MethodInfo s_getCombo;
        private static bool s_initialized;

        public static void Register()
        {
            if (s_initialized) return;
            s_initialized = true;
            try
            {
                Type apiType = null;
                foreach (var asm in AppDomain.CurrentDomain.GetAssemblies())
                {
                    apiType = asm.GetType("KeybindFramework.KeybindFrameworkApi");
                    if (apiType != null) break;
                }
                if (apiType == null) return;

                s_getCombo = apiType.GetMethod("GetCombo", new[] { typeof(string), typeof(string) });

                // 5-arg overload: (modId, displayName, bindings, bundle, groupsAsTabs)
                //   bundle:        a shared name (e.g. "My Studio's Mods") to share one tab with your
                //                  other mods, each as its own sub-tab - or null for just your own tab.
                //   groupsAsTabs:  true turns each distinct group heading in Descriptors above into its
                //                  own sub-tab instead of just a heading - handy once you have a lot of
                //                  keybinds. false (or the 3-arg overload) keeps today's single flat tab.
                var reg = apiType.GetMethod("RegisterRaw", new[] { typeof(string), typeof(string), typeof(string[]), typeof(string), typeof(bool) });
                if (reg == null) return;

                var rows = new List<string>();
                foreach (var d in Descriptors)
                    rows.Add(string.Join(SEP, new[] { d[0], d[1], d[2], d[3], d[4], d[5], "", d[6] }));
                reg.Invoke(null, new object[] { MOD_ID, DISPLAY, rows.ToArray(), null, false });
            }
            catch { }
        }

        private static string ComboFor(string id, string fallbackDefault)
        {
            try
            {
                if (s_getCombo != null)
                {
                    var c = s_getCombo.Invoke(null, new object[] { MOD_ID, id }) as string;
                    if (!string.IsNullOrEmpty(c)) return c;
                }
            }
            catch { }
            return fallbackDefault;
        }

        private static bool IsModifierKey(KeyCode k)
        {
            switch (k)
            {
                case KeyCode.LeftControl: case KeyCode.RightControl:
                case KeyCode.LeftShift:   case KeyCode.RightShift:
                case KeyCode.LeftAlt:     case KeyCode.RightAlt:
                    return true;
                default:
                    return false;
            }
        }

        private static bool ModifiersHeldExactly(List<KeyCode> mods)
        {
            bool wantCtrl = false, wantShift = false, wantAlt = false;
            foreach (var m in mods)
            {
                if (m == KeyCode.LeftControl || m == KeyCode.RightControl) wantCtrl = true;
                if (m == KeyCode.LeftShift || m == KeyCode.RightShift) wantShift = true;
                if (m == KeyCode.LeftAlt || m == KeyCode.RightAlt) wantAlt = true;
            }
            bool hasCtrl = Input.GetKey(KeyCode.LeftControl) || Input.GetKey(KeyCode.RightControl);
            bool hasShift = Input.GetKey(KeyCode.LeftShift) || Input.GetKey(KeyCode.RightShift);
            bool hasAlt = Input.GetKey(KeyCode.LeftAlt) || Input.GetKey(KeyCode.RightAlt);
            return wantCtrl == hasCtrl && wantShift == hasShift && wantAlt == hasAlt;
        }

        public static bool IsPressed(string id, string defaultCombo)
        {
            if (AppDomain.CurrentDomain.GetData("MoriPP_KeybindCapturingFrame") is int cf && Time.frameCount - cf <= 1)
                return false;

            if (!s_initialized) Register();

            string combo = ComboFor(id, defaultCombo);
            KeyCode mainKey = KeyCode.None;
            var mods = new List&lt;KeyCode>();
            foreach (var token in combo.Split('+'))
            {
                var t = token.Trim();
                if (t.Length == 0 || t == "None") continue;
                if (!Enum.TryParse&lt;KeyCode>(t, out var key)) continue;
                if (IsModifierKey(key)) mods.Add(key); else mainKey = key;
            }
            if (mainKey == KeyCode.None) return false;
            if (!ModifiersHeldExactly(mods)) return false;
            return Input.GetKeyDown(mainKey);
        }

        private static bool HeldKey(KeyCode k)
        {
            switch (k)
            {
                case KeyCode.LeftControl: case KeyCode.RightControl:
                    return Input.GetKey(KeyCode.LeftControl) || Input.GetKey(KeyCode.RightControl);
                case KeyCode.LeftShift: case KeyCode.RightShift:
                    return Input.GetKey(KeyCode.LeftShift) || Input.GetKey(KeyCode.RightShift);
                case KeyCode.LeftAlt: case KeyCode.RightAlt:
                    return Input.GetKey(KeyCode.LeftAlt) || Input.GetKey(KeyCode.RightAlt);
                default:
                    return Input.GetKey(k);
            }
        }

        // For "Modifier" rows and anything hold-based - true while every key of the combo is held.
        // A combo cleared to "None" returns true: the gesture then needs no held key at all.
        public static bool IsHeld(string id, string defaultCombo)
        {
            if (AppDomain.CurrentDomain.GetData("MoriPP_KeybindCapturingFrame") is int cf && Time.frameCount - cf <= 1)
                return false;

            if (!s_initialized) Register();

            string combo = ComboFor(id, defaultCombo);
            if (string.IsNullOrWhiteSpace(combo)) return true;
            combo = combo.Trim();
            if (combo == "None") return true;
            foreach (var token in combo.Split('+'))
            {
                var t = token.Trim();
                if (t.Length == 0) continue;
                if (!Enum.TryParse&lt;KeyCode>(t, out var key)) continue;
                if (!HeldKey(key)) return false;
            }
            return true;
        }
    }
}

Call MyKeybinds.Register() once from IMod.Initialize, then anywhere you check for input:

if (MyKeybinds.IsPressed("MyMod_OpenWindow", "LeftControl + M"))
    OpenWindow();

And for a "Modifier" row (or any hold-based key), combine IsHeld with your own gesture check:

if (MyKeybinds.IsHeld("MyMod_PaintModifier", "LeftAlt") && Input.GetMouseButtonDown(0))
    PaintTile();

The id you pass to IsPressed / IsHeld must match the id from that keybind's row in Descriptors exactly — that's how the framework knows which binding you're asking about.
